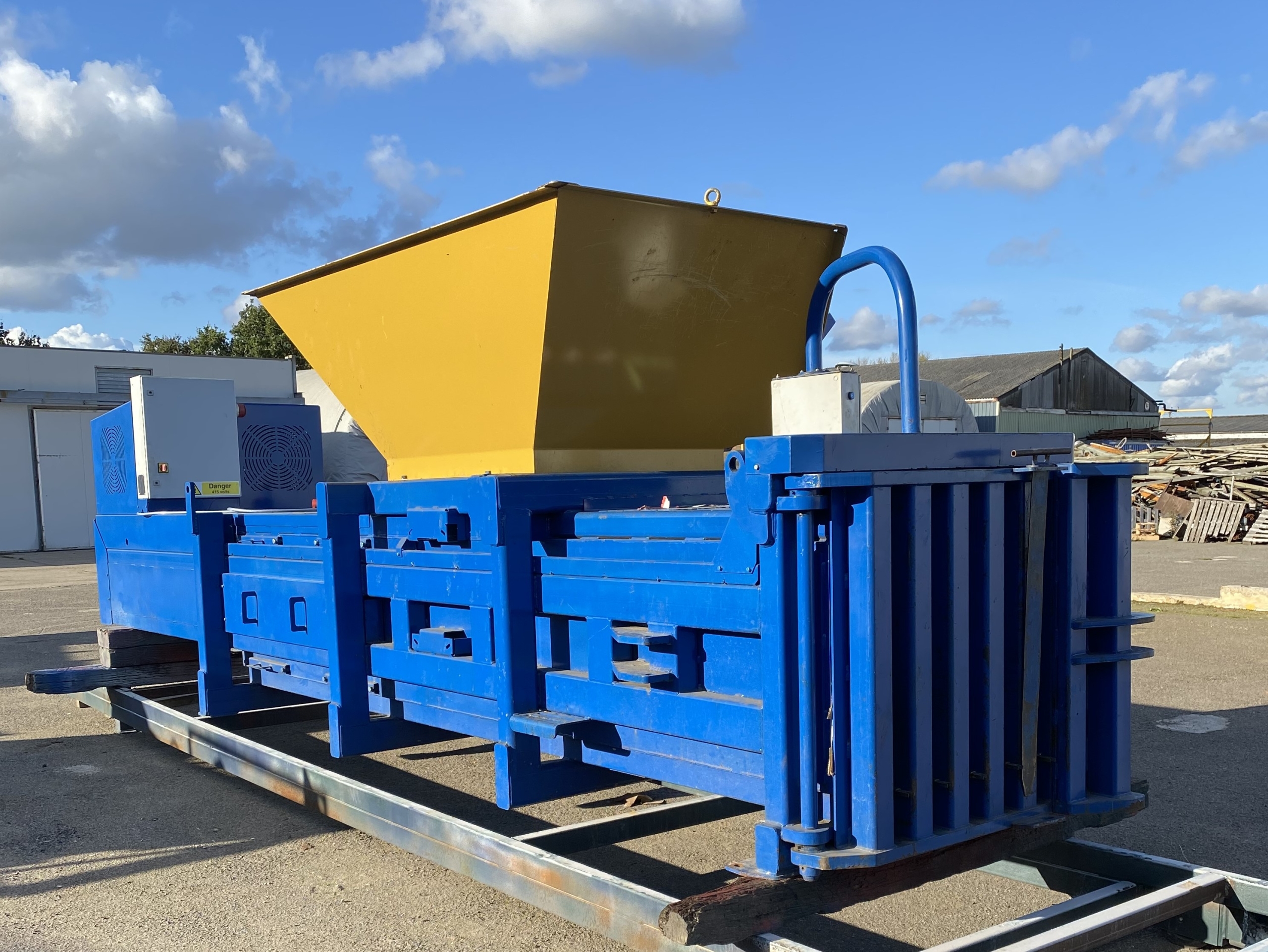

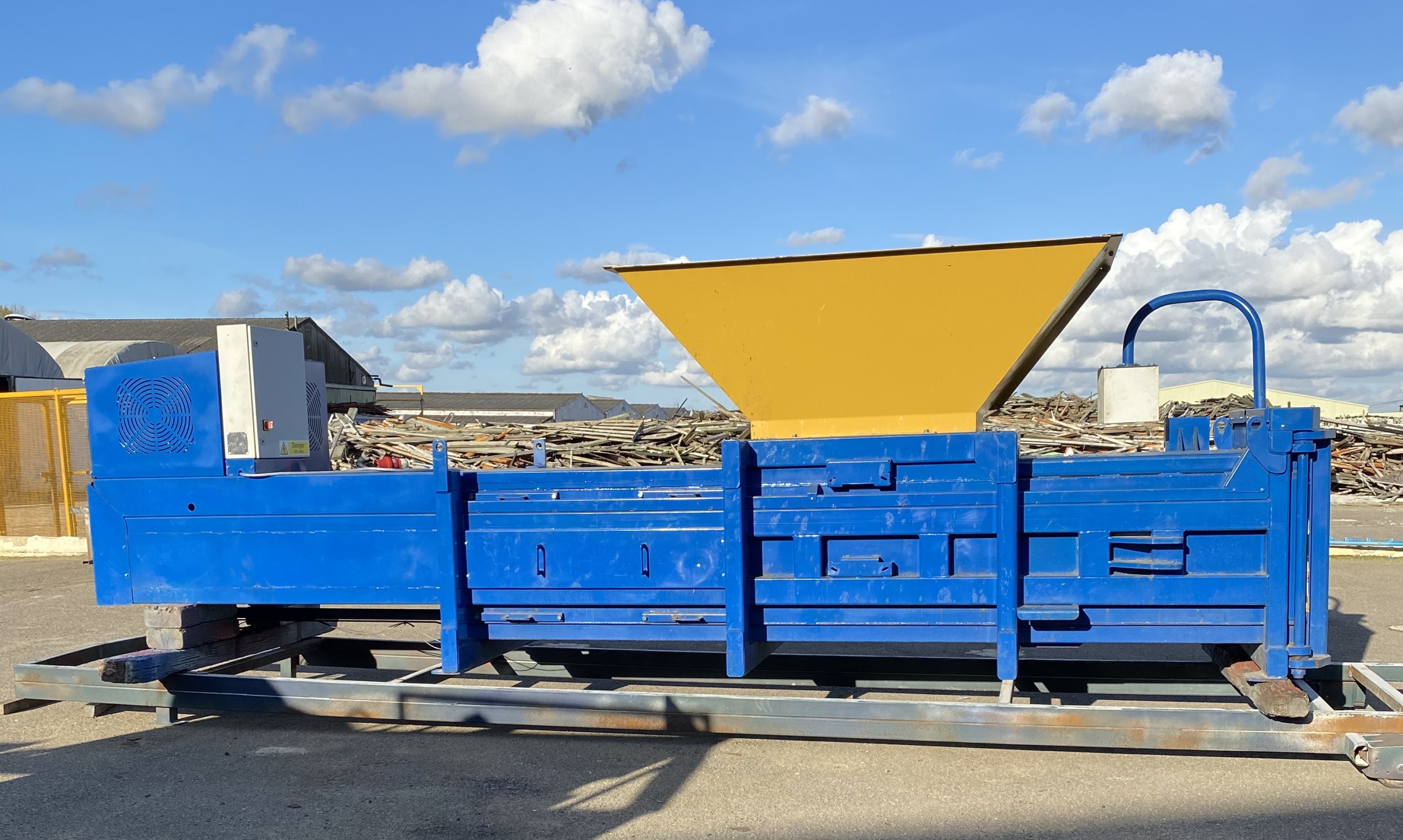

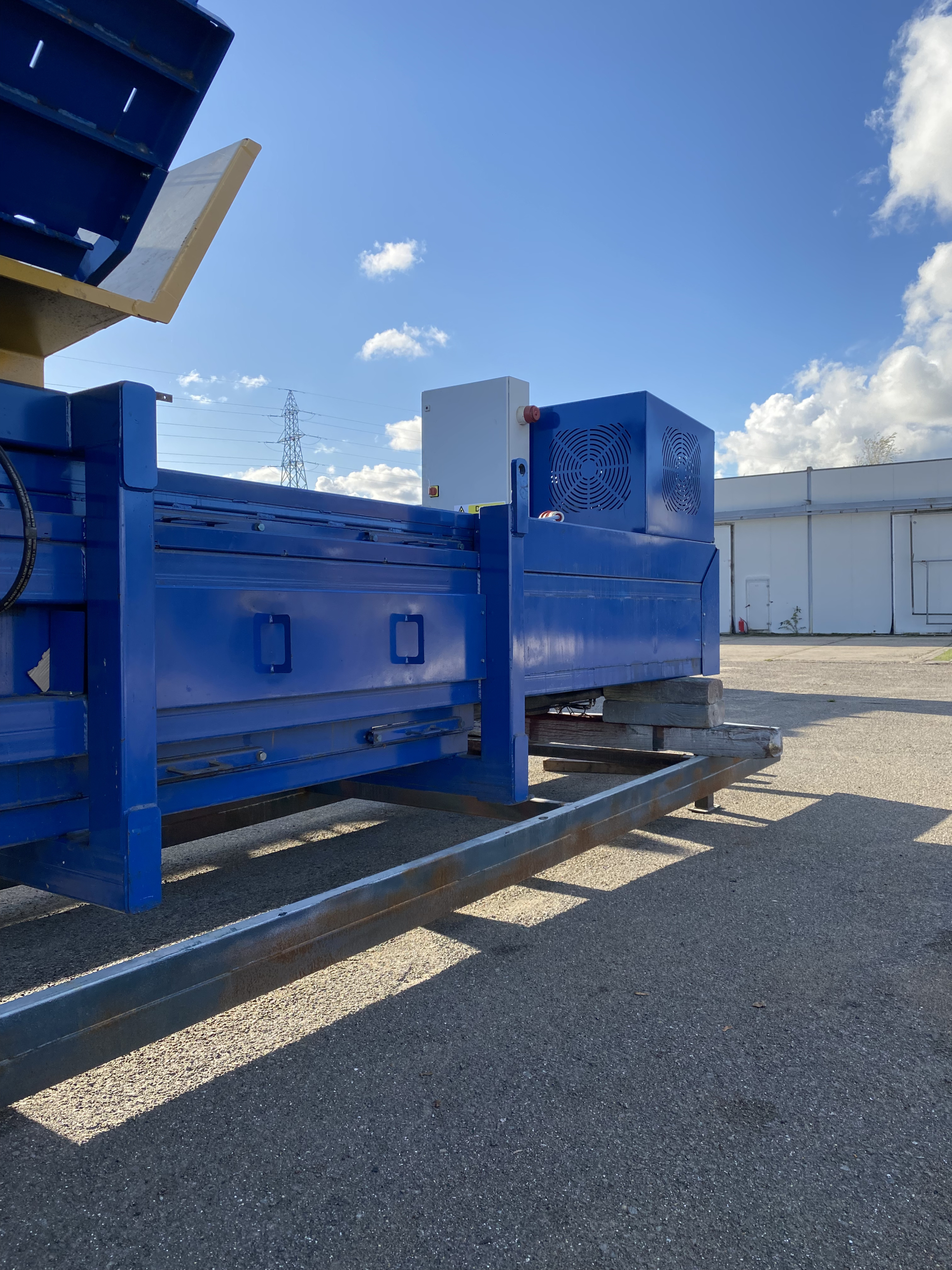

MacFab HZ50t Semi Automatic Horizontal Baler Features:

•  A semi-Automatic Horizontal Baler with 50 Ton compaction force.

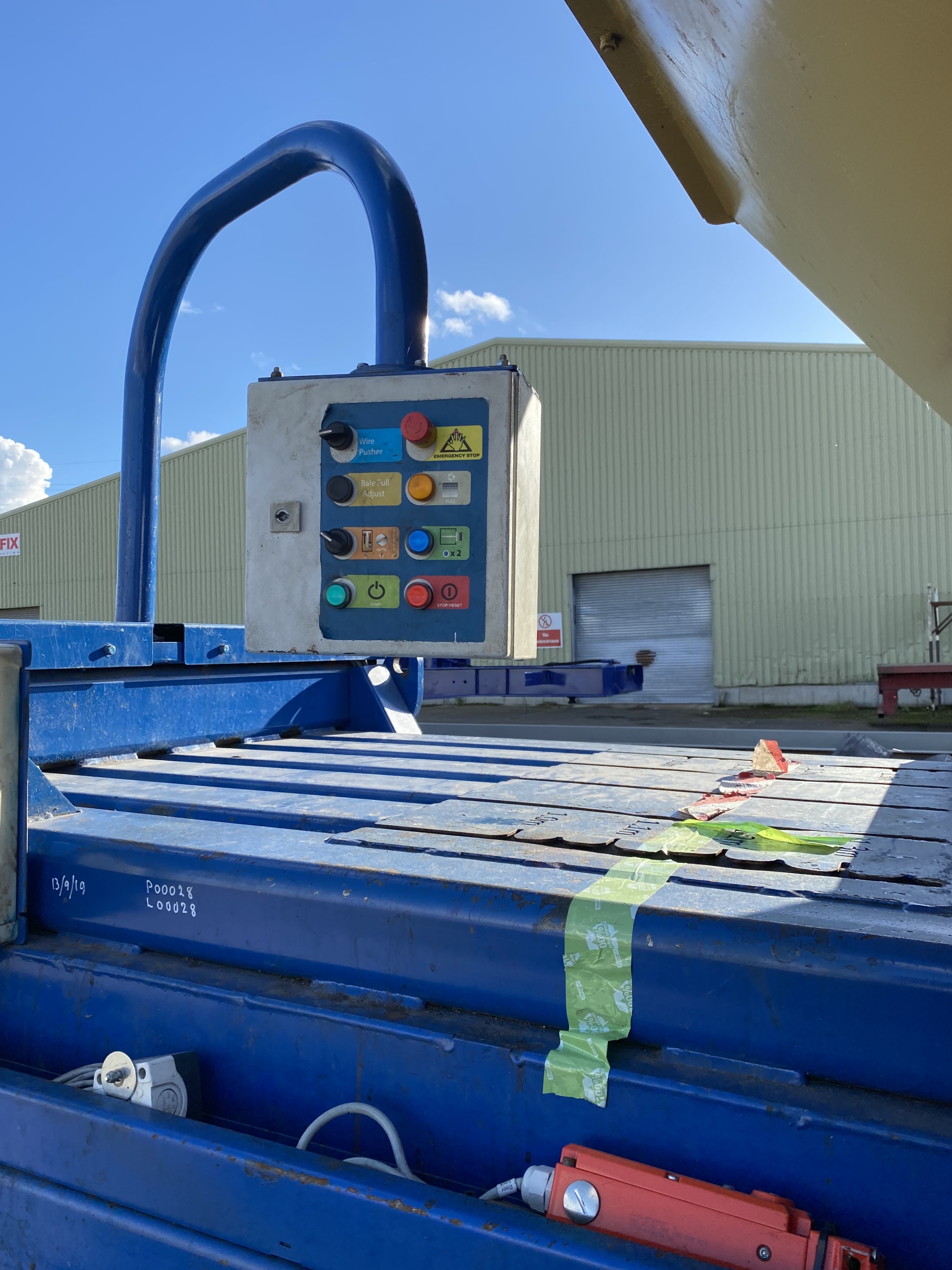

•  PLC controls offer safe and easy operation.
•  Removable top and bottom shear blades for easy maintenance and replacement.
•  Lower photo eye for automatic stop/start when loading material into the baler.
•  6 oil filled cast nylon slide for plunger guides.
•  Full stroke compaction.
•  Automatic sheer jam correction.

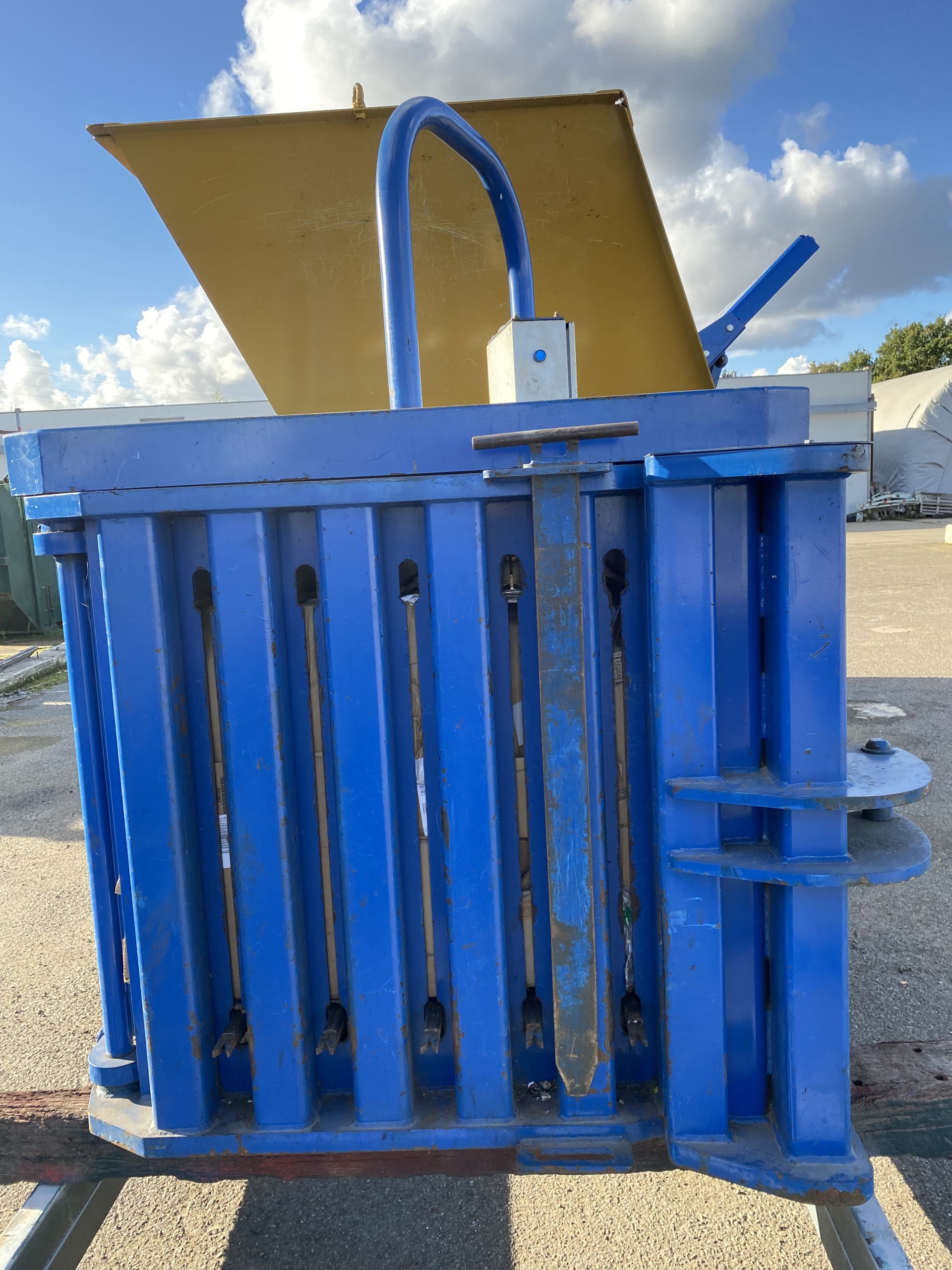

•  Hydraulic door latch with safety interlock.

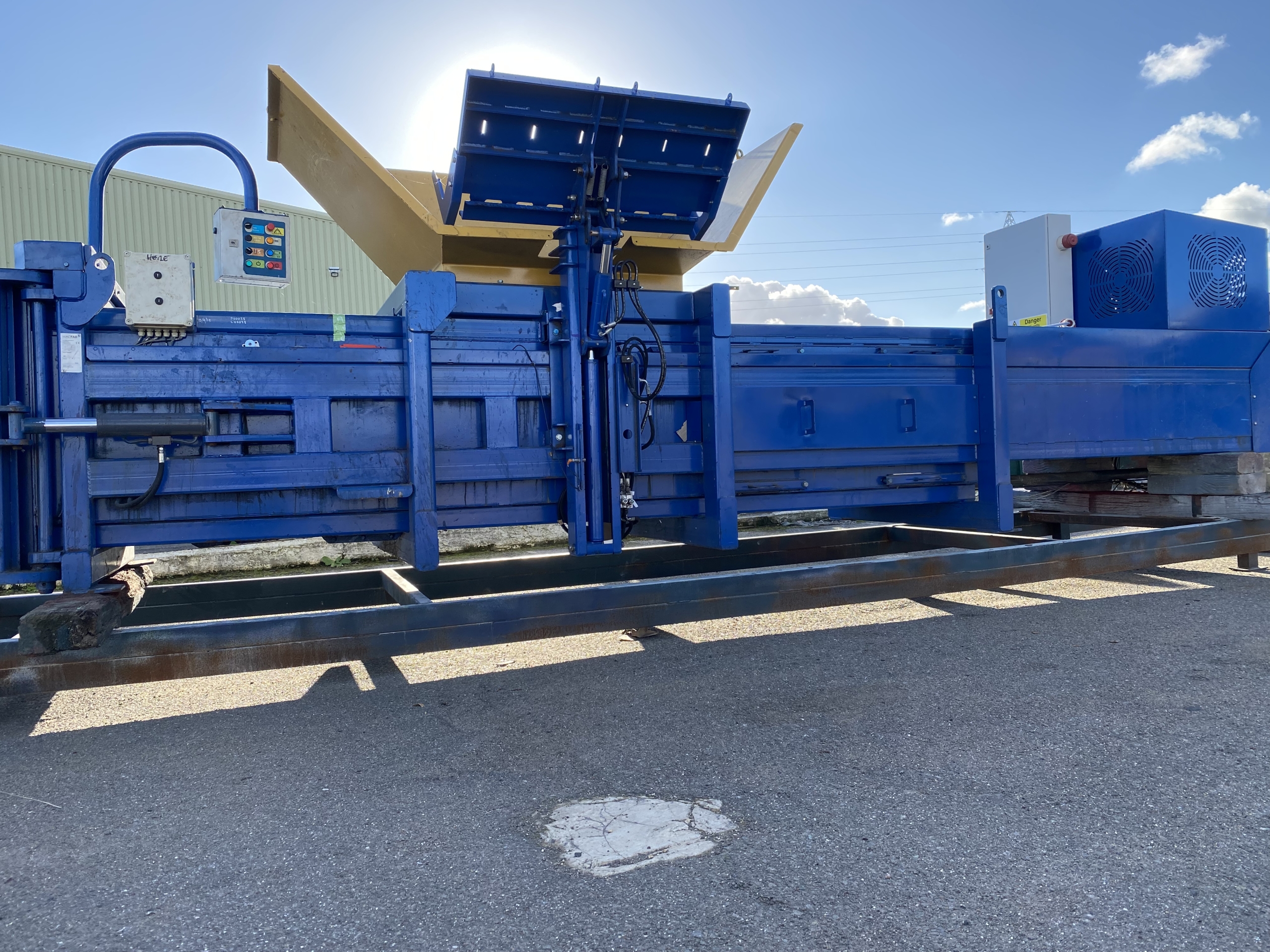

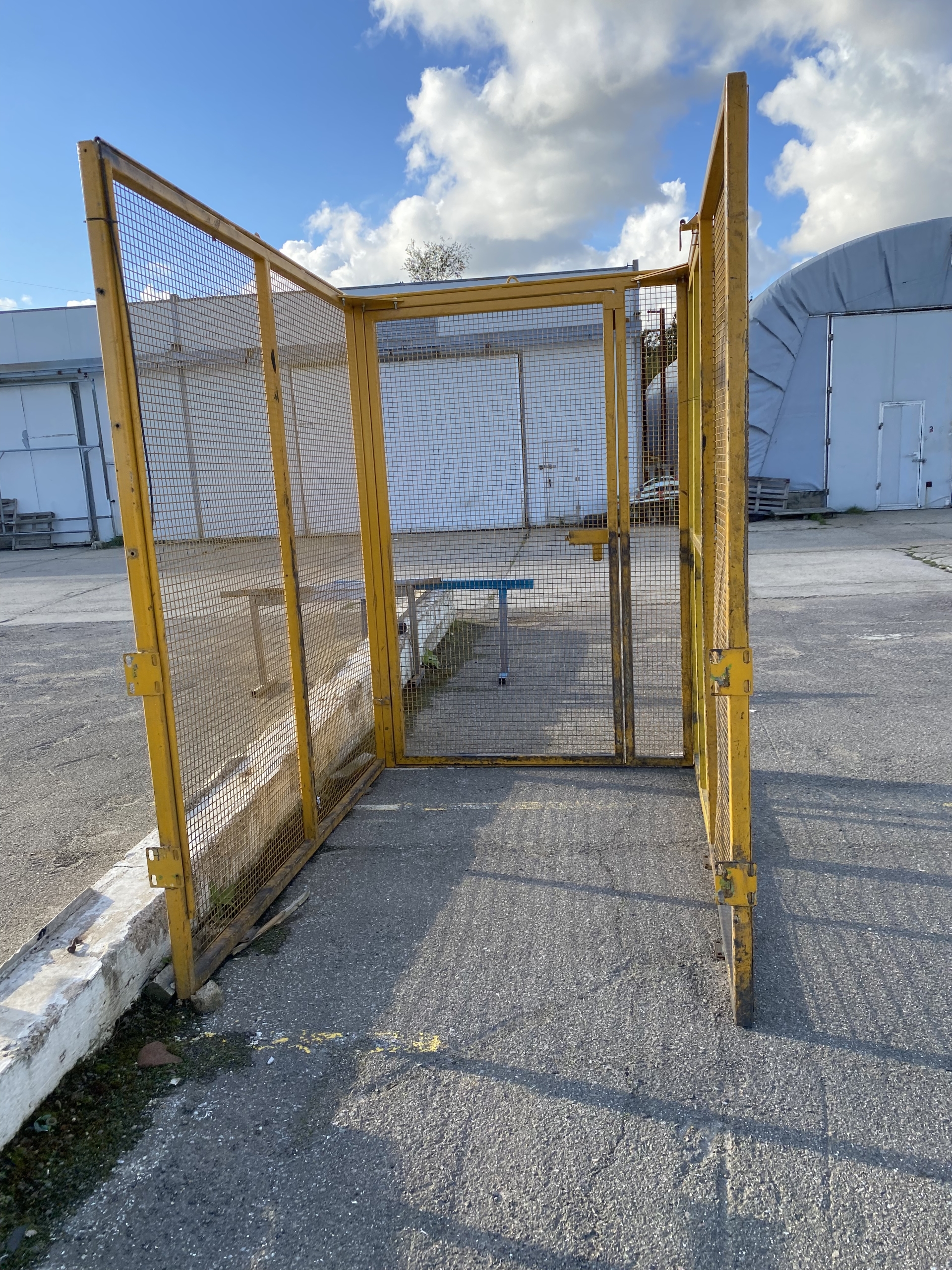

•  Bin lifter with safety cage for loading material.
•  Right door swing.

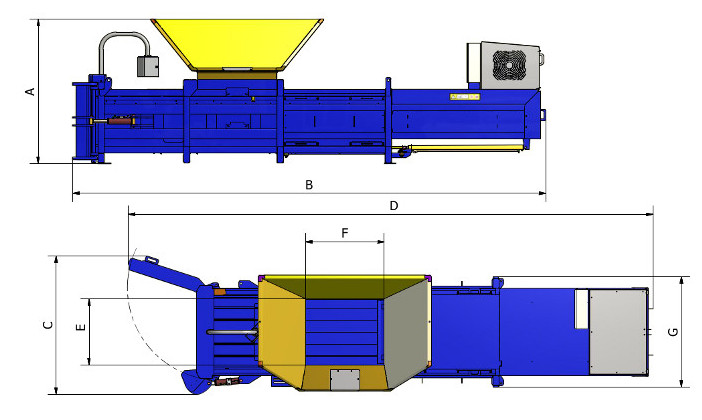

BALER DIMENSIONS                                            BALE DIMENSIONS

Height: 2.193 m                                                Height: 0.750 m

Width: 7.000 m                                                 Width: 1.500 m

Depth: 1.782 m                                                 Depth: 1.100 m

Weight: 7.5T                                                     Weight: 500 kg (depending on material used)

                                                                        Cycle Times: 45 seconds

Power Supply: 380 - 400 Volt 1 phase                 LOADING APERTURE SIZES

Motor: 11 kW 32 Amp                                        Width: 1.200 m

Pressing Force: up to 50 Ton                              Depth: 1.009 m

Collection: From Burrell Way, Thetford, IP24 3RW, UK

Delivery: Can be arranged at a cost.  If you would like a delivery cost, please contact us for more information.

VAT to be added to invoice.
